Switchcraft RCA Plug – Long Handle, Straight 2-Conductor | Type 3502A

$6.99
  • Switchcraft RCA Plug – Long Handle, Straight 2-Conductor | Type 3502A

Switchcraft RCA Plug – Long Handle, Straight 2-Conductor | Type 3502A

$6.99

20 in stock

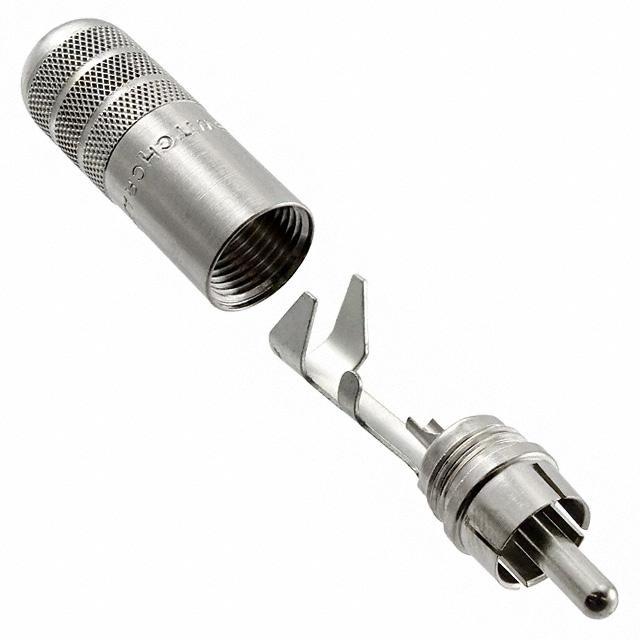

The Switchcraft 3502A RCA Plug is a premium long-handle, straight 2-conductor connector built for rugged audio applications. Designed to accommodate thicker cables (up to 0.290"), it features a solid center pin, solder cup termination, and a secure cable clamp—ideal for custom RCA builds in pro audio, studio, or hi-fi environments.

This version includes a nickel-plated handle and plug for added durability and signal reliability.

Key Features:

  • Long Handle with Cable Clamp: Accommodates larger diameter cables up to 0.290" (7.37 mm)

  • Solid-Pin RCA Design: Delivers clean signal transmission and mechanical stability

  • Solder Cup Center: Simplifies termination for DIY and professional techs alike

  • Nickel-Plated Brass Construction: Ensures long-term durability and conductivity

  • Classic Switchcraft Reliability: Trusted in pro audio environments worldwide

Specifications:

  • Manufacturer: Switchcraft

  • Model: 3502A

  • Type: RCA Plug, straight 2-conductor

  • Cable Capacity: Up to 0.290 in. (7.37 mm)

  • Body Length: 1.085 in.

  • Item Length: 1.585 in.

  • Plug Diameter: 0.125 in.

  • Plug Length: 0.312 in.

  • Contact Resistance: < 0.020 Ω

  • Insulation Resistance (@500VDC): ≥ 2,000 MΩ

  • Dielectric Withstand Voltage: ≥ 500 VAC

  • Current Carrying Capacity: 6.0 A

  • Working Voltage: 250 VAC / 140 VDC

  • Thread Diameter: 0.375 in.

  • Thread Pitch: 32 tpi

  • Temperature Range: -40°C to 85°C

Applications:

  • Custom RCA audio cables

  • High-end home audio installations

  • Studio and broadcast equipment

  • Vintage gear and amp mods


Upgrade your cable builds with a pro-grade connector—get the Switchcraft 3502A RCA Plug today at British Audio.
