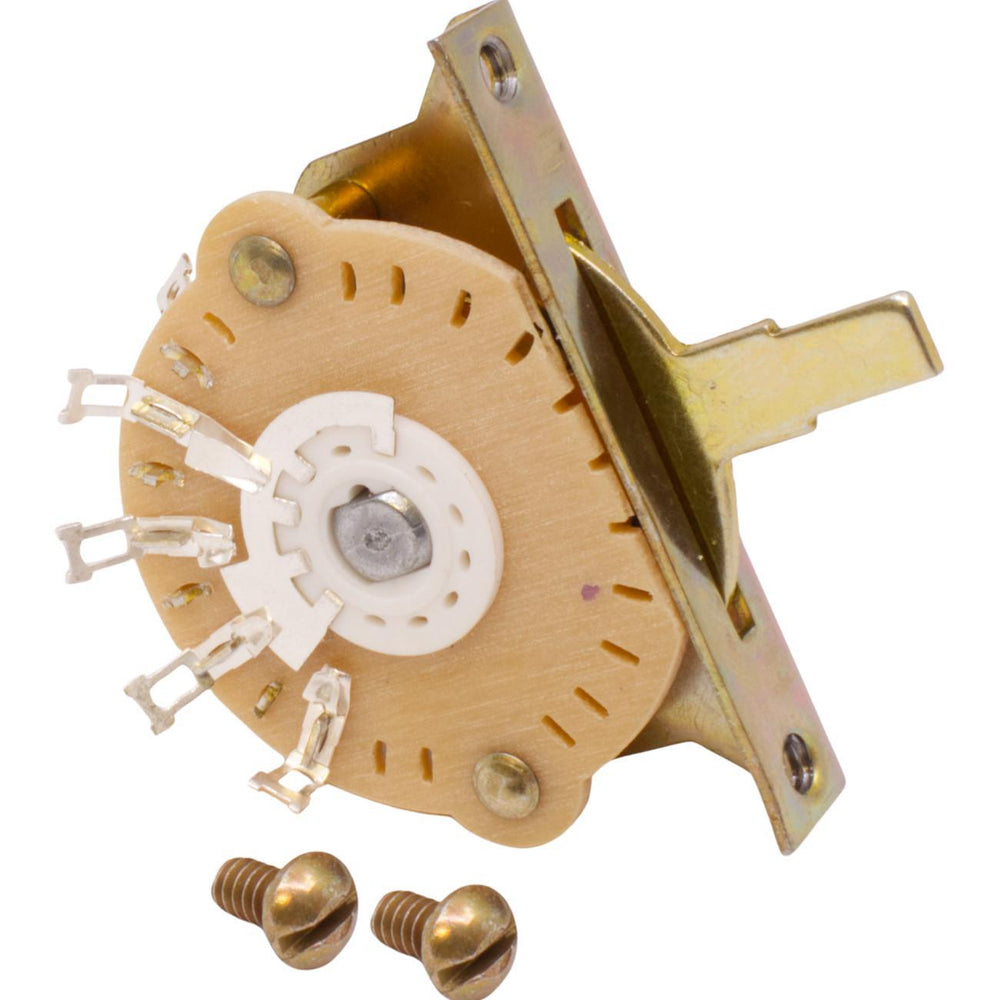

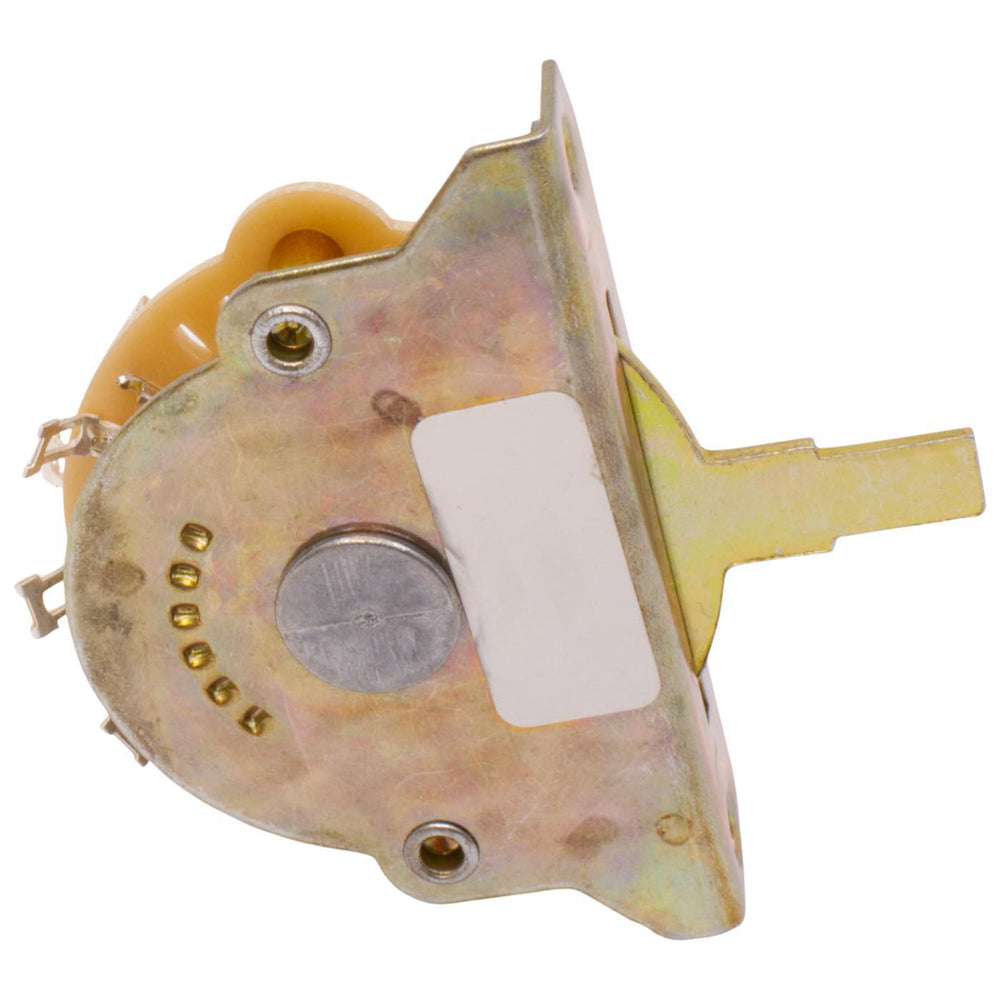

Key Features

• Genuine Oak Grigsby switch – the industry standard for Fender® guitars

• 5-way single wafer lever selector for Stratocaster® Standard (U.S. size)

• Patented “T” slugs secure solder-lug clips to the stator for long-lasting reliability

• Designed and refined over three decades to provide the precise feel players demand

• Brass/AG plated contacts for superior conductivity

Compatibility

✔ Stratocaster® Standard (U.S. size)
✔ Direct replacement for 5-way pickup selector switches
✔ Fits 1" × 1/16" slot
✔ 1-⅝" center-to-center screw spacing
✔ Requires 1-⅜" cavity depth

Measurements

• Body Depth: 1.365 in.

• Body Width: 0.506 in.

• Body Diameter (wide): 1.875 in.

• Item Length: 1.877 in.

• Lever Length: 0.625 in.

• Mounting Hole Center-to-Center: 1.63 in.

• U.S. Screw Size: #6

• U.S. Thread Major Diameter: 0.138 in.

• U.S. Thread Pitch: 32 tpi.

Electrical Specifications

• Contact Metal: Brass / AG plate (standard)

• Max Positions: 6

• Detent Angle: 15°

• Indexing Angles: 30°

• Resistive Load: 1.5 A @ 28 VDC, 0.23 A @ 115 VAC

• Current Carrying Capacity: 9 A

• Current Continuous Capacity: 9 A

• Dielectric Strength: 1,500 VAC

• Stop Strength: 25 in-lb (minimum)

• Operating Temperature: -25°C to +85°C

Packaging Information

• Dimensions: 1.997 in. × 1.879 in. × 0.611 in.

• Weight: 0.0529 lbs.

Important Notes

⚠ Professional installation recommended
⚠ Sold individually
